When the installation calls for something that doesn’t require the load-bearing capacity of Eaton’s standard B-Line series strut system, the answer is likely to be the B-Line series mini channel system. This mini metal strut system with fittings is an economical method for supporting light load requirements. For example, it can be used as a mini electrical strut system or mounted inside an enclosure.

Contact me about this product

Live chat

Overview Models Resources Support

A mini channel strut system made to do the job

The important features of each B-Line series mini channel include:

Cold-forming in a modern rolling mill from 18–gauge (1.2mm) low-carbon plain steel strips (ASTM A1008 33,000 psi min. yield) and pre-galvanized steel strips (ASTM A653 33,000 psi min. yield)
Continuous slots with in-turned lips to allow attachments at any point
The finest-quality channel combinations created with new, high-tech welding equipment
Standard lengths of 10' (3.05m) and 20' (6.09m) for B62 series channels and 10' (3.05m) for B72 series channels with custom lengths on request

B-Line series aluminum mini strut channel systems are also available.

High-quality fittings to ensure long life

Just as mini channels are carefully crafted for long life and excellent service, so are the system fittings. Mini channel strut fittings are formed from hot-rolled pickled and oiled strip or sheet steel (ASTM A1011, HSLAS, Grade 50, Class 1)

Unless otherwise noted on the drawings, all fittings feature these dimensions:

Hole size: 9/32" (7.14mm) diameter
Hole spacing: 13/32" (10.3mm) from end and 1-1/16" (27.0mm) on-center
Width: 13/16" (20.6mm)
Thickness: 1/8" (3.2mm)

Strut materials and finishes:

Plain (ASTM A1011, HSLAS, Grade 50, Class 1)
Electro-plated zinc (ASTM B633 SC3 Type II), DURA GREEN
Pre-galvanized (ASTM A653 33,000 psi min. yield)
Hot-dipped galvanized (ASTM A123)

B-Line series CoSPEC Specifier Center

At Eaton, our goal is to be a leading provider of information and resources to design and engineering professionals engaged in the design, construction, and maintenance of engineered MEP&T facility subsystems globally. CoSPEC is packed with features like the new CAD / BIM / PDMS / Submittal catalog which offers the ability to select and view B-Line series products in 2D and 3D. Then, with just a couple of clicks, easily download design content in one of nearly 100 different CAD, BIM, PDMS, and graphics formats.

Explore CoSPEC

Specifications

Filters

Search within these values

Try another search

Your search "" did not match any documents or products.

Available channels and fittings

Used in conjunction with B-Line series strut system, B-Line series mini channels and fittings are the best choice for lighter loads.

A complete listing of channels, fittings and specifications is available in the B-Line section of the catalog.

B62 Channel:

Thickness: 18-gauge (1.2mm)
Standard finishes: plain, Dura Green, pre-galvanized
Weight: 0.42 lbs./ft. (0.62kg)-0.839 lbs./ft. (1.25kg/m)
Beam span: 12" (305mm)-72" (1829mm)
Standard lengths: 10' (3.05m) and 20' (6.09m)

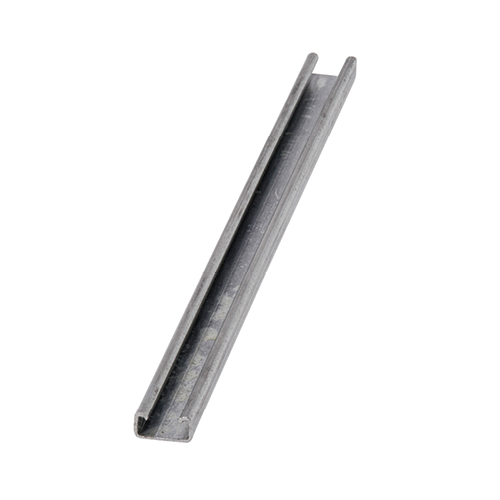

B72 Channel:

Thickness: 18-gauge (1.2mm)
Standard length: 10’ (3.05m)
Standard finishes: plain, Dura Green, pre-galvanized
Weight: 0.287 lbs./ft. (0.43kg/m)-0.574 lbs./ft. (0.85kg/m)
Beam span: 12" (0.305mm)-60" (1524mm)

Mini channel nuts:

Thickness: 0.150" (3.81mm)
Wt./C: 1.0 lb. (0.45kg)

Square washer

Standard finishes: electro-plated zinc, Dura Green
Wt./C: 2 lbs. (0.9kg)

Mini channel fittings

Standard finishes: electro-plated zinc, Dura Green

B6129 and B6340 two hole splice plate

Wt./C: 5 lbs. (2.2kg)

Three hole splice plate

Wt./C: 7 lbs. (3.2kg)

Three hole flat adapter plate

Wt./C: 19 lbs. (8.6kg)

Four hole splice plate

Wt./C: 11 lbs. (5.0kg)

Two hole swivel plate

Wt./C: 7lbs. (3.2kg)

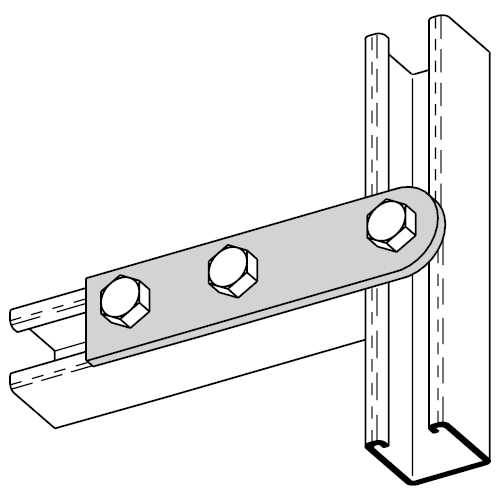

Three hole swivel plate

Wt./C: 10 lbs. (4.5kg)

Three hole corner plate

Wt./C: 8 lbs. (3.6kg)

Four hole corner plate

Wt./C: 11 lbs. (5.0kg)

Four hole tee plate

Wt./C: 11 lbs. (5.0kg)

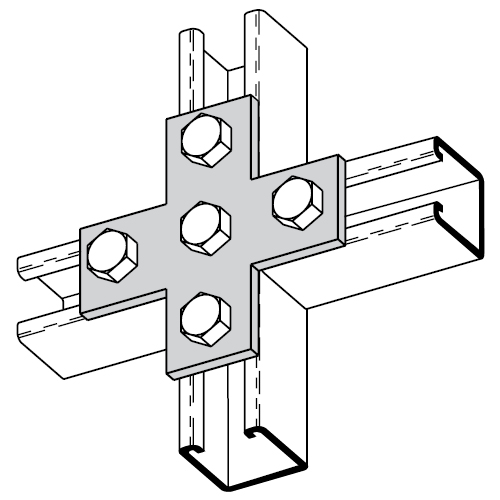

Five hole cross plate

Wt./C 13 lbs. (5.9kg)

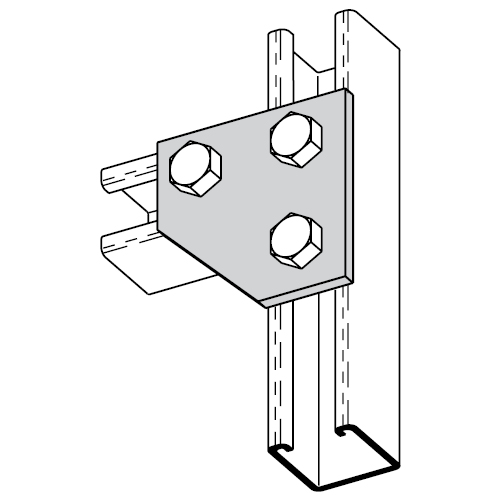

Three hole corner gusset plate

Wt./C: 9 lbs. (4.1kg)

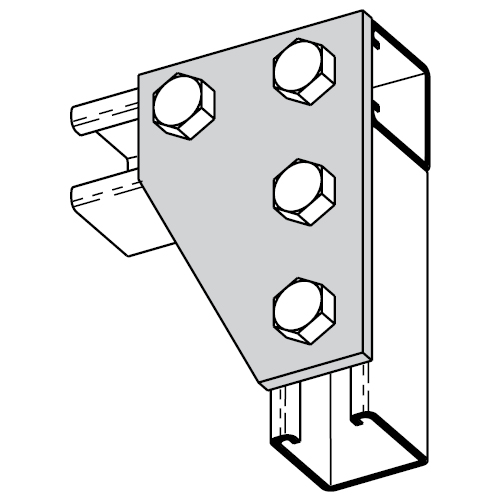

Four hole corner gusset plate

Wt./C: 15 lbs. (6.8kg)

Three hole tee gusset plate

Wt./C: 10 lbs. (4.5kg)

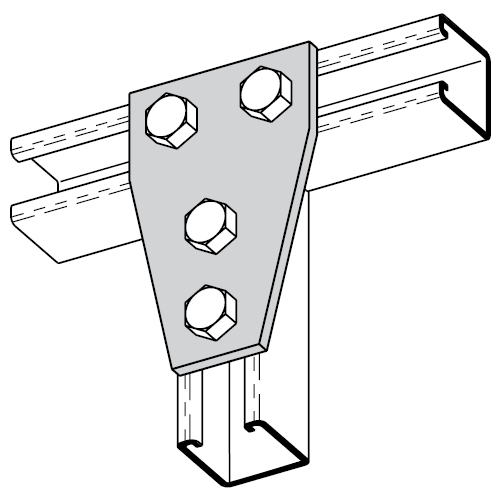

Four hole tee gusset plate

Wt./C: 15 lbs. (6.8kg)

Five hole tee gusset plate

Wt./C: 22 lbs. (10.0kg)

B6060 and B6230 two hole corner angle

Wt./C: 5 lbs. (2.2kg)

B6102 and B6103 three hole corner angle

Wt./C: 8 lbs. (3.6kg)

B6232 and B6374 three hole corner angle

Wt./C 7 lbs. (3.2kg)

B6104 and B6558 four hole corner angle

Wt./C: 10 obs. (4.5kg)

Four hole offset bent tee

Wt./C: 11 lbs. (5.0kg)

Five hole offset bent tee

Wt./C: 14 lbs. (6.3kg)

Four hole shelf bracket

Wt./C: 19 lbs. (8.6kg)

B6134R & L and B6234R & L four hole corner gusset

Wt./C: 15 lbs. (6.8kg)

Four hole gusseted shelf angle

Wt./C: 15 lbs. (6.8kg)

Five hole gusseted shelf angle

Wt./C: 22 lbs. (10.0kg)

Four hole gusseted three way shelf angle

Wt./C: 15 lbs. (6.8kg)

Five hole gusseted three way shelf angle

Wt./C: 18 lbs. (8.1kg)

Four hole adjustable corner angle

Wt./C: 32 lbs. (14.5kg)

Two hole 90˚ adapter angle

Wt./C: 11 lbs. (5.0kg)

B6147-B6152, B6154 and B6162-B6165 two hole open angle

Wt./C: 8 lbs. (3.6kg)

B6156-B6161 and B6155 two hole closed angle

Wt./C: 8 lbs. (3.6kg)

Two hole 45˚ adapter angle

Wt./C: 14 lbs. (6.3kg)

Two hole splice clevis for B72

Wt./C: 11 lbs. (5.0kg)

Three hole splice clevis for B72

Wt./C: 16 lbs. (7.2kg)

Four hole splice clevis for B72

Wt./C: 24 lbs. (109kg)

Two hole splice clevis for B62

Wt./C: 17 lbs. (7.7kg)

Three hole splice clevis for B62

Wt./C: 26 lbs. (11.8kg)

Four hole splice clevis for B62

Wt./C: 36 lbs. (16.3kg)

Three hole U-support

Wt./C: 10 lbs. (4.5kg)

Three hole U-support

Wt./C: 12 lbs. (5.4kg)

Three hole U-support

Wt./C: 16 lbs. (7.2kg)

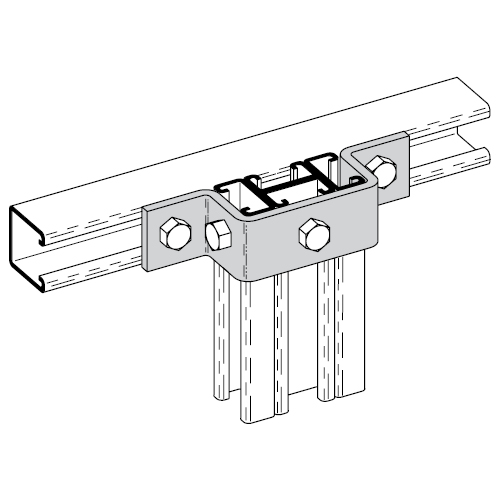

Five hole U-support

Wt./C: 13 lbs. (5.9kg)

Four hole clevis

Wt./C: 9 lbs. (4.1kg)

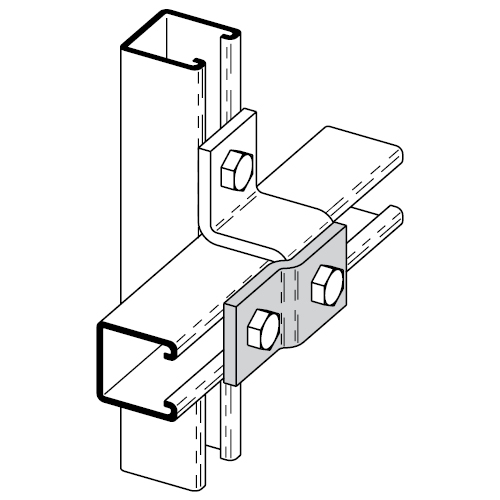

Two hole offset Z-support

Wt./C: 5 lbs. (2.2kg)

Two hole offset Z-support for B62

Wt./C: 7 lbs. (3.2kg)

Two hole offset Z-support for B72

Wt./C: 7 lbs. (3.2kg)

Two hole offset Z-support for B62A

Wt./C: 9 lbs. (4.1kg)

Two hole offset Z-support

Wt./C: 7 lbs. (3.2kg)

Two hole Z-adapter plate

Wt./C: 28 lbs. (12.7kg)

Eight hole wing connection

Wt./C: 28 lbs. (12.7kg)

End cap for B62

Material: ASTM A1008 SS Grade 33 Type 1
Wt./C: 3 lbs. (1.3kg)

End cap for B72

Material: ASTM A1008 SS Grade 33 Type 1
Wt./C: 1 lb. (0.4kg)

Z-beam clamp

5/16"-18 setscrew included
13/16" (20.6) maximum flange thickness
Material: ASTM A36
Wt./C: 13 lbs. (5.9kg)

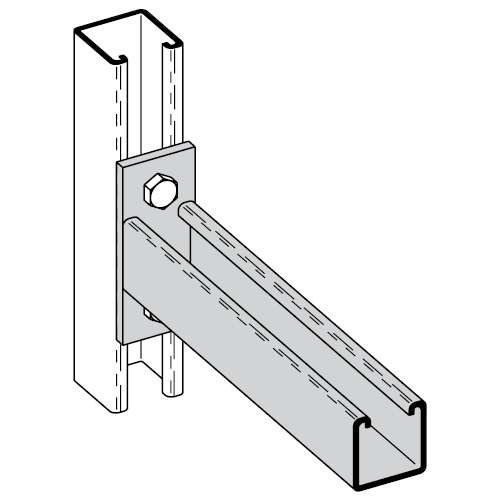

Bracket

Safety factor: 2
Uniform design load: 40 lbs. (0.18kN)

One hole double tubing strap

Material: ASTM A1008 SS Grade 33 Type 1

One hole tubing strap

Material: sizes ¼"-1/2", ASTM A611 Grade C; 5/8"-1", ASTM A1008 SS
